Câble MICRO USB coudé: A mâle vers Micro B 90° VERS LE BAS 180m
Câble MICRO USB coudé: A mâle vers Micro B 90° VERS LE BAS 180m
USB 2.0 Micro B angled plug

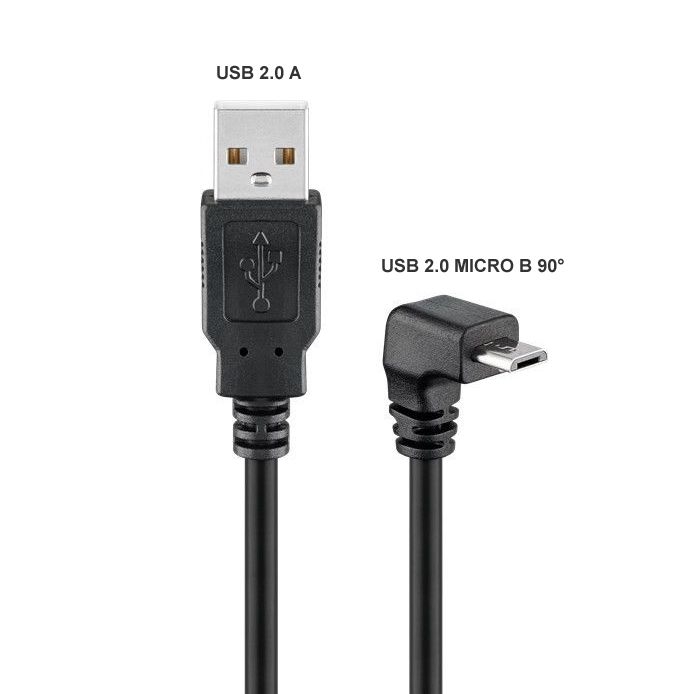

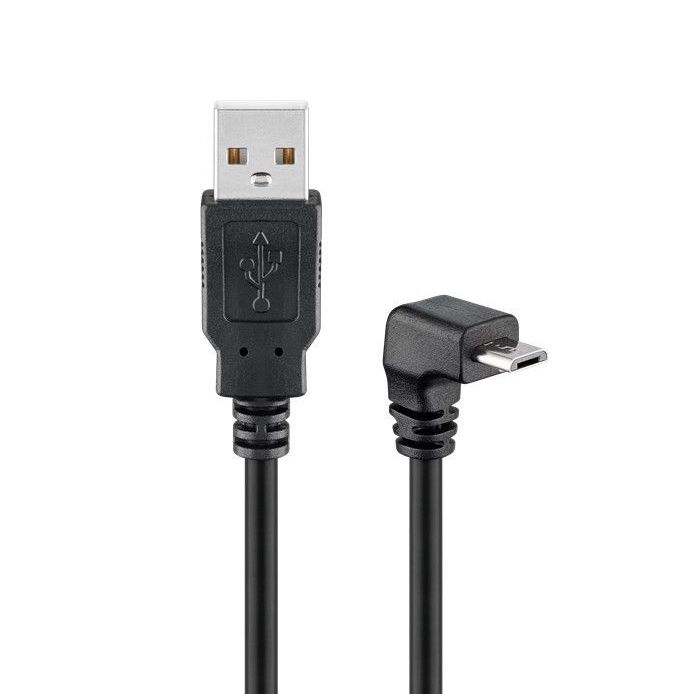

This USB 2.0 cable is characterised by its very small 90° angled USB Micro B plug.
Space-saving and better grip due to 90° angle
The small 90° angled plug provides a firmer hold in the USB 2.0 Micro socket and can be used in hard-to-reach places.
Angle direction
We describe the cable offered here as angled 90° DOWN. However, whether the angle is correct for your application depends on the position of the micro jack of the USB device. Therefore, please check the orientation of the Micro B port of your USB device. The Micro B socket is trapezoidal and has slightly rounded corners.
Technical data
- USB 2.0 cable with angled Micro B connector
- Cable length: approx. 1.8 metres | 180cm
- Connection 1: USB 2.0 A plug (male)

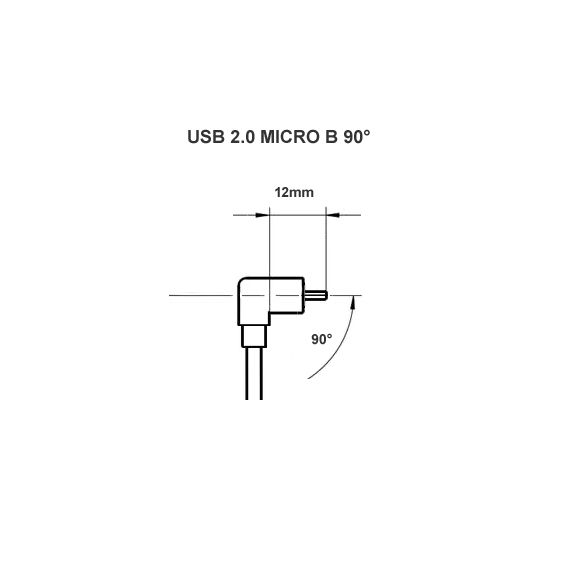

- Connector 2: USB 2.0 MICRO B male angled 90° DOWN.
- Double shielding with Al-foil shield and braided shield (45/0.13mm)
- Core size: AWG28 (7/0.12mm), copper
- USB 2.0 compatible, max. 480Mbit/s
- e.g. for mobile phones, smartphones, digital cameras, tablets
- Customs tariff no. for USB cable: 85444290
- Colour: black
- Weight: 46gr (without packaging)
- CE, WEEE, RoHS compliant
